Pultrusion machine · ZS-L5A · ZS-L10A

Caterpillar pultrusion machine

A caterpillar pultrusion machine pulls the cured profile between two continuous, synchronized tracks instead of reciprocating clamps. Grip is spread over a long contact zone, so there is no clamp handover and no clamp mark. The ZS-L5A and ZS-L10A deliver 50 kN and 100 kN pull force with 2,500 mm and 3,000 mm holding zones.

Request a quotation View specifications

10 t single-station caterpillar pultrusion machine — Product reference · Henan Zhongsheng

Specification

Configuration table

Every cell is either a figure supplied by the factory or TBD · ask factory. No typical values. Source: frpzs.com crawler pultrusion machine page, fetched 2026-10-19.

Caterpillar pultrusion machine specification
Parameter	ZS-L5A	ZS-L10A
Maximum pull force	50 kN	100 kN
Maximum clamping force	70 kN	150 kN
Holding (track contact) lengthOne summary on the source page says 4 m; table value shown	2,500 mm	3,000 mm
Traction motor power	3.7 kW	5.5 kW
Die heatingZS-L10A per factory FAQ	TBD · ask factory	6 zones, 24 kW
Temperature accuracy	TBD · ask factory	±1 °C
Track width	TBD · ask factory	300 mm
Machine weight	3,900 kg	4,200 kg
Pull speed range	TBD · ask factory	TBD · ask factory
Supply voltageOthers on request	380 V 50 Hz std.	380 V 50 Hz std.
Lead time (working days)	TBD · ask factory	TBD · ask factory

Scope of supply

What is included, what is quoted separately

Use these lists to compare scope. The signed quotation confirms the final inclusions and options.

Included in the base quotation

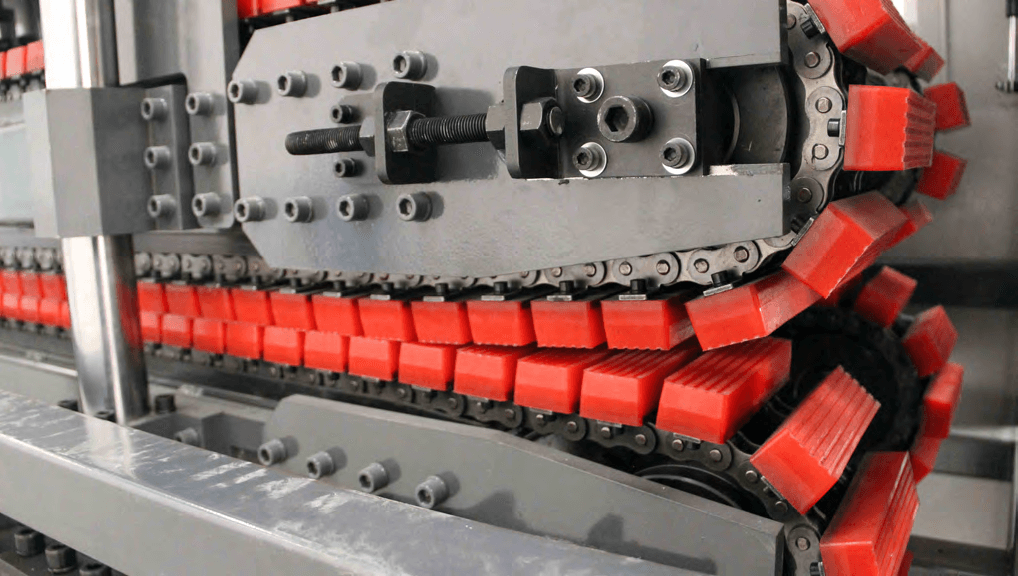

Caterpillar puller with polyurethane-faced tracks and UHMWPE chain guide rails
Mold table with 3-axis (X, Y, Z) adjustment and multi-zone die heating
PLC control with automatic speed and pull-force regulation
Cut-off saw station
English manual, electrical drawings
Pre-shipment FAT on the factory floor

Quoted separately on request

Pultrusion die(s), including multi-cavity dies
Roving creel, mat/veil stands, resin bath or injection box
UL 508A or other destination-standard control panel
Installation supervision and on-site training
Spare tracks and wear-part kit
Freight, insurance, duties

Applications

Applications to discuss with engineering

Thin-walled round and square tubes
Radome and antenna tubes
Window and door frame sections
Small rods in multi-cavity dies
Hollow profiles with cosmetic surfaces
Tent poles and light structural tubes

From the workshop

Photographs

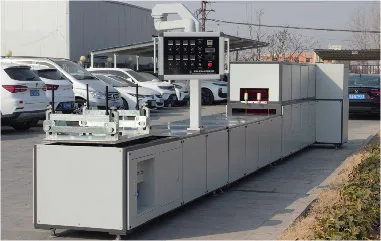

10 t double-station caterpillar pultrusion machine

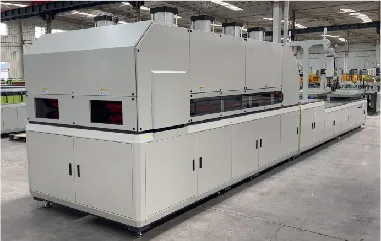

Pultrusion machine assembly in the equipment workshop

Commercial terms

Who you contract with

Manufacturer: Henan Zhongsheng Composite Material Co., Ltd.
Warranty party and term: Henan Zhongsheng Composite Material Co., Ltd.; term and coverage confirmed in the written quotation.
Contracting party and exporter of record: Pultruded Export, Shanghai, China
Incoterms: FOB Chinese port by default; CIF/DAP on request
Payment: Milestones tied to drawing approval, FAT acceptance and shipment. Exact split on the quotation.
Third-party inspection: SGS, BV or TÜV pre-shipment inspection accepted, cost borne by the buyer
Electrical: 380 V 50 Hz standard; 480 V 60 Hz and other supplies on request. Destination electrical and conformity requirements must be agreed in the quotation; certification is not implied.

FAQ

Questions buyers ask

When is a caterpillar puller the right choice?: For thin-walled hollow profiles with low stiffness during cure, cosmetic surfaces that must not carry clamp marks, and small sections pulled several at a time. Heavy, thick profiles needing high pull force are better on a hydraulic machine.
Can it pull several profiles at once?: Yes. With a multi-cavity die and the 300 mm track width of the ZS-L10A, several small profiles can be pulled in parallel. The cavity count is set during die design.
How long do the tracks last?: Track pad life depends on profile abrasiveness, clamping pressure and running hours. The factory has not published a figure; a spare-track price is included on the quotation.
What pull speed can I expect?: Speed is limited by resin cure in the die, not by the puller. Expected speed is stated for your profile after die design, not as a machine maximum.

Send a cross-section drawing. Get a scoped quotation.

Every quotation names the manufacturer, the exporter of record and the warranty party, and lists what is included.

Request a quotation for this product Book a factory audit
